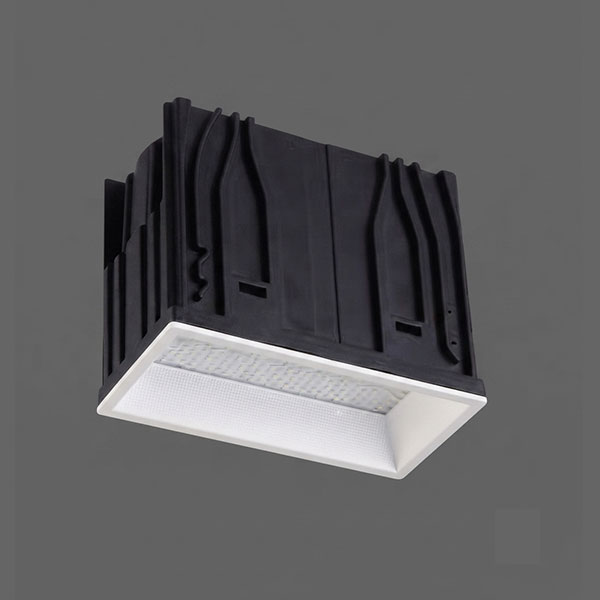

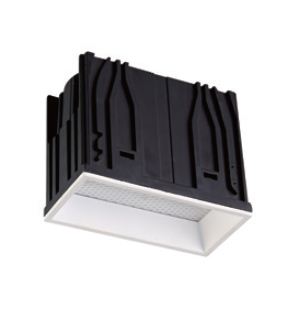

ADT-EX-A-T001-MIB
MODEL DESCRIPTION
| TYPE | : Recessed Fixed Downlight | ||
| USAGE | : Home, Commercial Area, Hotel | ||
| MODEL | : ADT-EX-A-T001-MIB | ||
REF CODE : R01-1
| Brand | : Alditra |
| Date | : January, 02 2025 |
Light Performances
PERFORMANCE
LED TYPE : COB
QTY OF LED : 1 PCS
LIGHT SOURCE : CCT
WATTAGE : 7 W
VOLTAGE : AC 220-240V
BEAM ANGLE : 80°
CRI : 80/90
CCT : 3000K/4000K/5000K
LUMEN :497lm
LAMP LIFE : 40,000 hrs
CUTOUT : 75,5×37,5mm

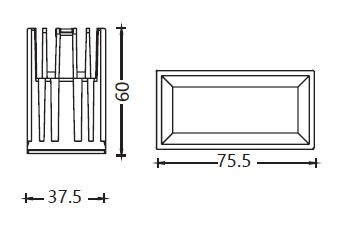

SIZE : P75,5×L37,5xT60mm
IP RATING : IP20/IP44
FINISH
MATERIAL :
– ALMUNIUM
COLOR
– WHITE/BLACK
REFLECTOR
– MIRROR BLACK/MIRROR SILVER/MATT BLACK
– MIRROR BLACK/MIRROR SILVER/MATT BLACK
CONTROL
TYPE : EXTERNAL
MODEL :
INPUT : 220-240V
OUTPUT :
DIMMABLE: YES
REMARK : NON-DIM/TRIAC/1-10V/DALI
